NTS 03-G+

NTS 03-G +: Multiport Network Time Server

The NTS 03-G Plus is a fully customizable satellite reference clock. It meets the demanding precision and reliability requirements of the Power, Telecommunications and Enterprise sectors.

Key Features:

  • PRP Support
  • References GPS & GLONASS networks
  • OCXO/Rubidium options
  • NTP/SNTP
  • PTP (IEEE 1588v2) Master/Slave function
  • Enhanced security and encryption that exceeds NERC CIP requirements
  • Optional second PSU for redundancy
  • Up to 6 high power IRIG-B or pulse drivers
  • 3, 4 or 6 independent Ethernet ports
  • Configurable timezone settings
  • Remote configuration over Ethernet
  • Remote firmware upgrades
  • Configuration encryption and security
  • Isolated power supply

Input/Output Signals:

  • DC IRIG-B or Modified Manchester
  • Fiber IRIG-B
  • AM IRIG-B (Modulated)
  • IEEE C37.118.1 extensions
  • User defined pulses (including 1 PPS)
  • PTP (IEEE 1588v2)
  • NTP/ SNTP
  • SNMP v1, v2c & v3

  NTS 03-G + (3 Port) NTS 03-G + (6 Port) NTS 03-G + (4 Port)

Physical

Design:
1U rack-mount bracket designed for 19 Inch cabinets.
IP40 (Ingress Protection rating)

Measurements:
(W) 430 mm x (D) 270 mm x (H) 45 mm
Weight 2.0 Kg 2.0 Kg 2.0 Kg
Display:
2-line x 16 character FSTN backlit display
LEDs:
2 LEDs indicating multiple statuses, including: Sync Status, Antenna cable fault, Satellite acquisition mode

GNSS Reciver

Type:
L1, C/A code, 32 Channel Parallel-tracking receiver
Frequency 1598 Mhz 1598 Mhz 1598 Mhz
Sensitivity (Acquisition): -155 dBm -155 dBm -155 dBm
Sensitivity (Tracking): -160 dBm -160 dBm -160 dBm

Oscillator - TCXO

TCXO (25°C)
<±100 μs/4 hours (24-hours Aging)
<±0.6ms/24 hours (24-hours Aging)
OCXO (25°C)
<±5 μs/8 hours (48-hours Aging)
<±10 μs/18 hours (48-hours Aging)
<±10 μs/24 hours (7-days Aging)
Rubidium (25°C)
<±1 μs/24 hours (7-days Aging)
<±3 μs/72 hours (7-days Aging)
<±10 μs/7 days (7-days Aging)

Network Time server option

Ethernet Ports:
Copper - RJ45 10/100 BASE-T Ethernet
Fiber - ST multi-mode fiber 100 BASE-FX Ethernet, 62.5/ 125 μm, λ 820
nm (available on Eth2 - Eth6)
3 Ports 6 Ports 4 Ports
Accuracy: <100 ns to UTC <100 ns to UTC <100 ns to UTC
General
- DHCP auto-configuration with fallback to ARP tested link-local address
- VLAN packet tagging
- Auto-MDIX
- Auto-negotiate
NTP/SNTP
Stratum-1 NTP & SNTP time server, Multicast & Broadcast server capability, Optional MD5 authentication.
Supports NTP v1, v2, v3, v4
PTP (IEEE1588 v2) Support
- One or Two Step operation
- End-to-End, Peer-to-Peer or manual delay calculations
- Layer 2 (Ethernet) or Layer 3 (UDP) transport
- Slave only mode
- Default Profile support
- Power Profile support (C37.238)
- Telecom Profile support (Slave only - ITU G. 8265.1)
- Telecom Profile support (Master/Slave - ITU G. 8275.1)
- C37.238 TLV supported
- Alternate Time Offset TLV supported with automatic or manual offset
- C37.238 SNMP MIB supported
PRP
- IEC 62439-3 (2016)
- Redundant master clock
- Fast failover slave
- Supports up to two PRP pairs
- PTP (IEEE 1588v2) Default & Power Profiles

(1 pair - Eth2 with Eth3)

(2 pairs - Eth2 with Eth3 & Eth5 with Eth6)

(1 pair - Eth2 with Eth3)
SNMP
V1,V2C & V3 support can be independently enabled; Configurable V1, V2C community names & security groups; Fully configurable via SNMP; V3 User-based Security Module (USM) support; USM authentication methods: MD5, SHA; USM privacy methods: DES, AES; USM MIB support
Notifications:
SNMP trap generation V1, V2C & V3; SNMPv3 traps can be authenticated & privatised via USM; Syslog (RFC-3164 & 5424 verities

Inputs/Outputs

1 x Programmable Output:
ESD protected, RS422 +-3.3 V output, 50 unit loads (3 Pin)
DC IRIG-B (Un-modulated, DCLS) with selectable C37.118.1 and AFNOR S87-500 extensions,
DCF77 time code,
User defined pulses (1 to 1000 PPS)
1 x IRIG-B Input:
DC IRIG-B (Un-modulated, DCLS) Extensions C37.118.1
ESD protected,
RS422 ( -7 V to +12 V common mode range)
1/8th unit load (150 k Ω)
Built in 120 Ω for optional termination (3 Pin)
4 x Programmable Outputs:
DC IRIG-B (Un-modulated, DCLS)
Extensions C37.118.1, AFNOR NF S87-500
User defined pulses (1to 1000 PPS)
DCF77 simulation
BNC: 5V TTL, 150 mA
ST Fiber: TX (62.5/ 125 μm, λ 820
nm), compatible with multi-mode fiber

2 x Programmable Outputs:
DC IRIG-B (Un-modulated, DCLS)
Selectable AM IRIG-B (Modulated)
Extensions C37.118.1, AFNOR NF S87-500
User defined pulses (1to 1000 PPS)
DCF77 simulation
DC IRIG-B: 5V TTL, 150 mA (BNC)
AM IRIG-B: 7.2Vpp 120 ohm output
impedance (BNC)

Timing Accuracy <100 ns to UTC <100 ns to UTC <100 ns to UTC (DC IRIG-B)
<2 µs to UTC (AM IRIG-B)
Power supply alarms (Power A & Power B)
Form A contacts (2 Pin)
2 2 2
Antenna alarm:
Form A contacts (2 Pin)
1 1 1
Sync relay:
Form A contacts (2 Pin)
1 1 1
USB configuration port:
Type B

Environmental/Electrical

Power supply options:
Primary:
- Low (14-36Vdc, 2 pin)
- Med (20-75Vdc, 2 pin)
- High (90-300Vdc, 2 pin)
- AC (85-265Vac, IEC 320 Inlet)
Secondary:
- Low (14-36Vdc, 2 pin)
- Med (20-75Vdc, 2 pin)
- High (90-300Vdc, 2 pin)
- AC (85-265Vac, IEC 320 Inlet)
Power Drain: 12W - 28W max (depending on order options) 12W - 28W max (depending on order options) 12W - 28W max (depending on order options)
Operating Temperature: -10°C to +65°C
-10°C to +60°C (Rubidium)
-10°C to +65°C
-10°C to +60°C (Rubidium)
-10°C to +65°C
-10°C to +60°C (Rubidium)
Humidity: 10 to 95% RH (non-condensing) 10 to 95% RH (non-condensing) 10 to 95% RH (non-condensing)

Programmability

Platform:
Windows-based configuration software is available for download on www.tekron.com.
Remote configuration over Ethernet includes the following user adjustable features:
- Multi-level access control
- Privacy & authentication methods equivalent to SNMP USM
- “Supervisor-mode” prevents non-approved changes
- Test mode
- Commissioning tool
Timing & Synchronization:
- Worldwide daylight savings and local time configuration.
- Adjustable hold-over times
- Antenna cable delay compensation

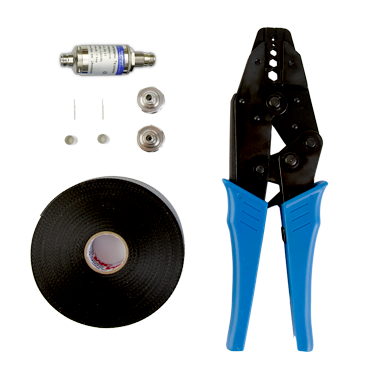

Villámvédelmi készlet

The antenna lightning protection kit affords additional protection through the use of an impulse suppressor installed in the antenna lead-in coax cable. In the event of a lightning-derived high voltage surge occurring on the coaxial cable, the impulse suppressor activates, short-circuiting the cable directly to the protection ground. Kit contents (all components required to install lightning protection are included): - Impulse Suppressor - Self-amalgamating tape - 2 x N-type Male crimp style connectors to match antenna cable - Crimp Tool to match the above connectors (RG59).

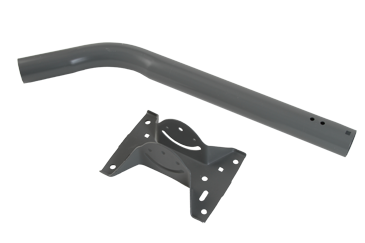

Antenna tartó

The antenna mounting bracket is an adjustable 500mm powder-coated steel bracket for securely mounting the timing optimized antenna option.

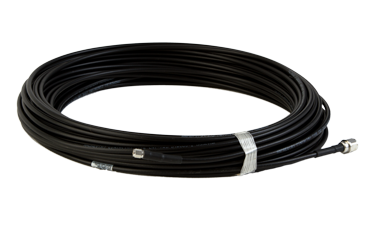

Antenna kábel

High performance CNT-240 cable, factory-fitted with a TNC-type male connector at one end, and a SMA male connector at the other. Cables are available in standard 15, 30, or 60 meter options. Contact our sales team if you require other custom lengths.

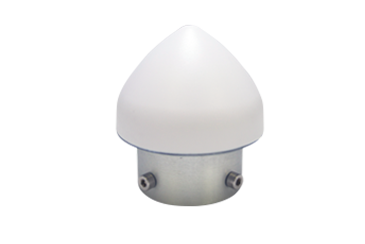

Timing Optimized GPS/GLONASS Antenna

Dual GPS/GLONASS antenna radome that boasts exceptional out-of-band rejection, specifically designed for industrial/static timing environments. The antenna includes a pipe-mounting plinth that is designed to fit the antenna mounting bracket accessory.
